P900 PRO / FLOOR TILING ROBOT

A new standard
for floor tiling.

Bring robotic precision to your next project. Integrated adhesive application and tile placement, in one coordinated workflow.

Discover P900 PRO

Designed for thin-set floor tile installation.

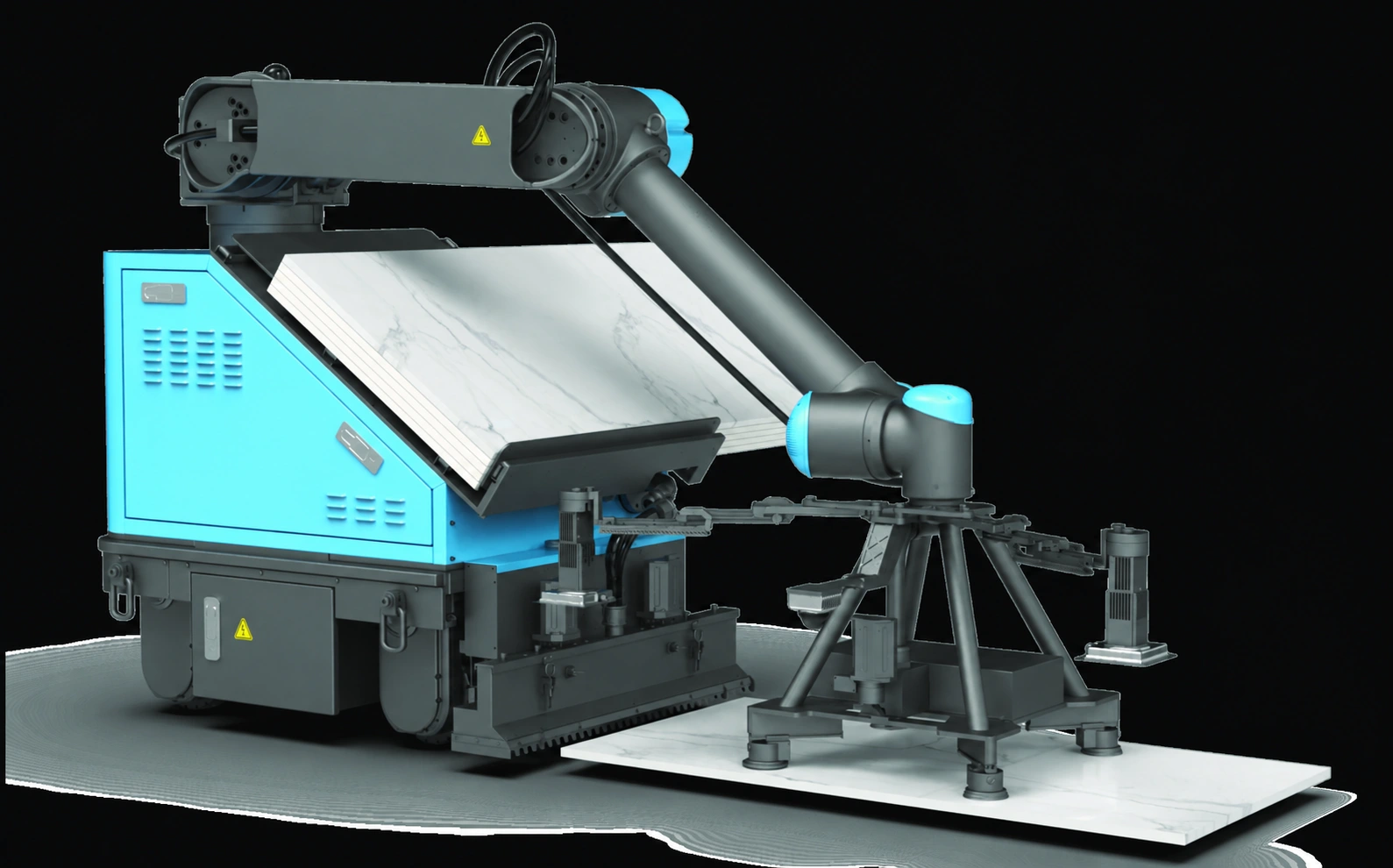

P900 PRO floor tiling robot with mobile chassis, articulated arm and tile suction system
P900 PROINTEGRATED TILING SYSTEM
ENGINEERED FOR THE WORK AHEAD.Discover the details

20–23 m²/h

Rated paving efficiency

>6 hours

Rated operating time

30 kg

Maximum single-tile weight

01 / THE TECHNOLOGY

Every movement.
A considered one.

The P900 PRO brings positioning, adhesive application and tile placement together for a coordinated thin-set installation process.

01

Vision-guided alignment

AI vision-servo joint matching works with global elevation and horizontal positioning to guide tile placement.

AI VISION + POSITIONING
02

A controlled grip

A four-point vacuum suction system handles each tile, supported by a 40 kg collaborative robotic arm.

FOUR-POINT VACUUM SYSTEM
03

One integrated process

Adhesive spreading and floor tiling are integrated into a single machine, reducing the equipment footprint on site.

ADHESIVE + PLACEMENT
04

Movement with purpose

An omnidirectional mobile chassis and high-precision PSD optical sensors support positioning throughout the paving cycle.

OMNIDIRECTIONAL CHASSIS

02 / TILE COMPATIBILITY

Different formats.
One capable system.

Support for common large-format floor tiles, with single-tile weights up to 30 kg.

Stack bond50% offset⅓ offset

Compatible paving patterns listed in the product brochure.

01600 × 600mm
02800 × 800mm
03600 × 1,200mm

Additional tile formats may be supported. Confirm compatibility for your project.

03 / ON SITE

Built for real spaces.

See floor tiling robotics at work across commercial, residential and public-space settings.

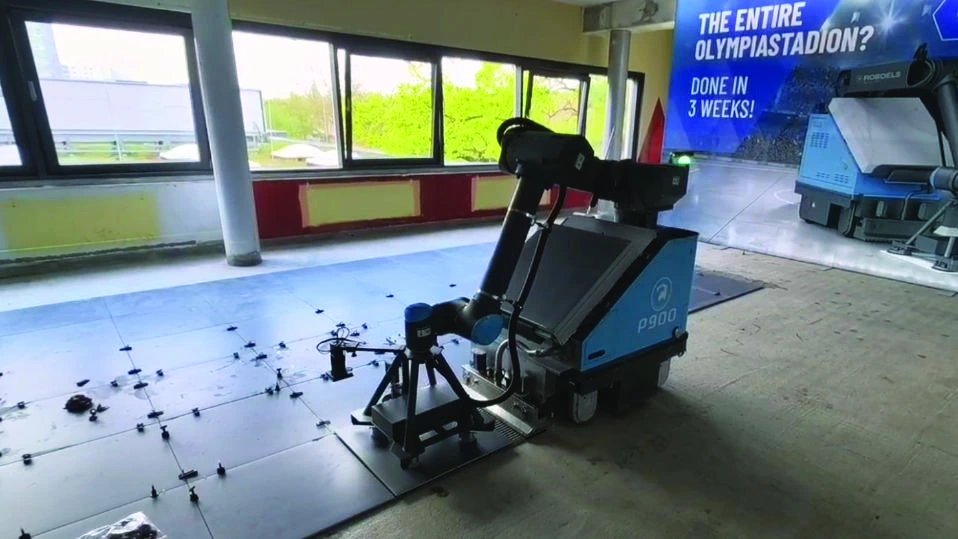

Floor tiling robot working inside a commercial building in Berlin

COMMERCIAL

Commercial interiors

Berlin, Germany

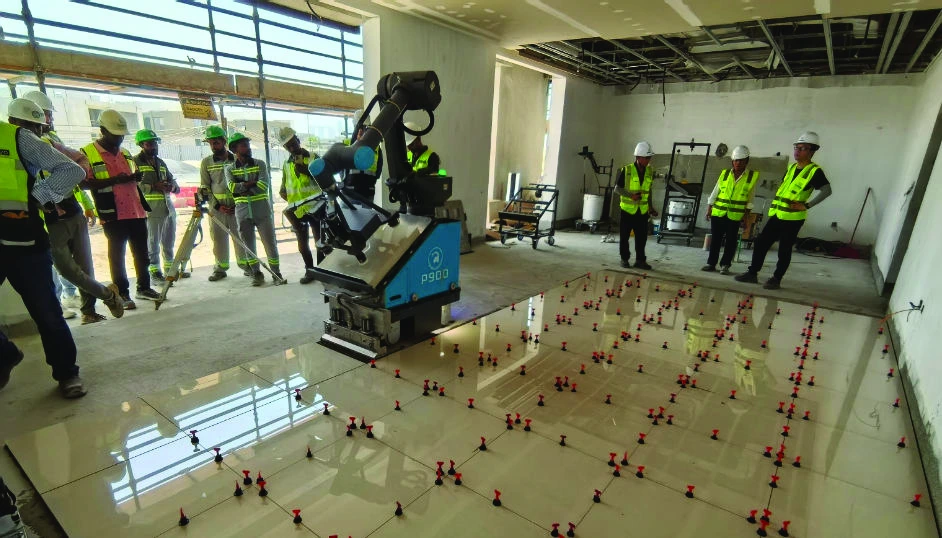

Floor tiling robot demonstration at a villa project in the UAE

RESIDENTIAL

Villa construction

United Arab Emirates

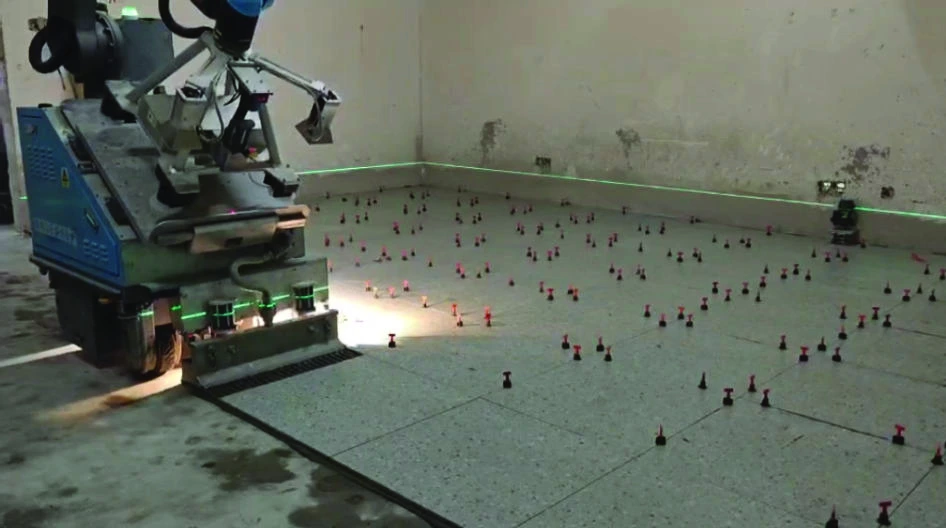

Floor tile paving work at Guangzhou Baiyun Airport Terminal 3

PUBLIC INFRASTRUCTURE

Airport Terminal 3

Guangzhou Baiyun Airport, China

Selected application references from the P900 PRO product documentation.

04 / SUPPORTING EQUIPMENT

The workflow, connected.

Auxiliary equipment for tile loading, material mixing and bucket lifting.

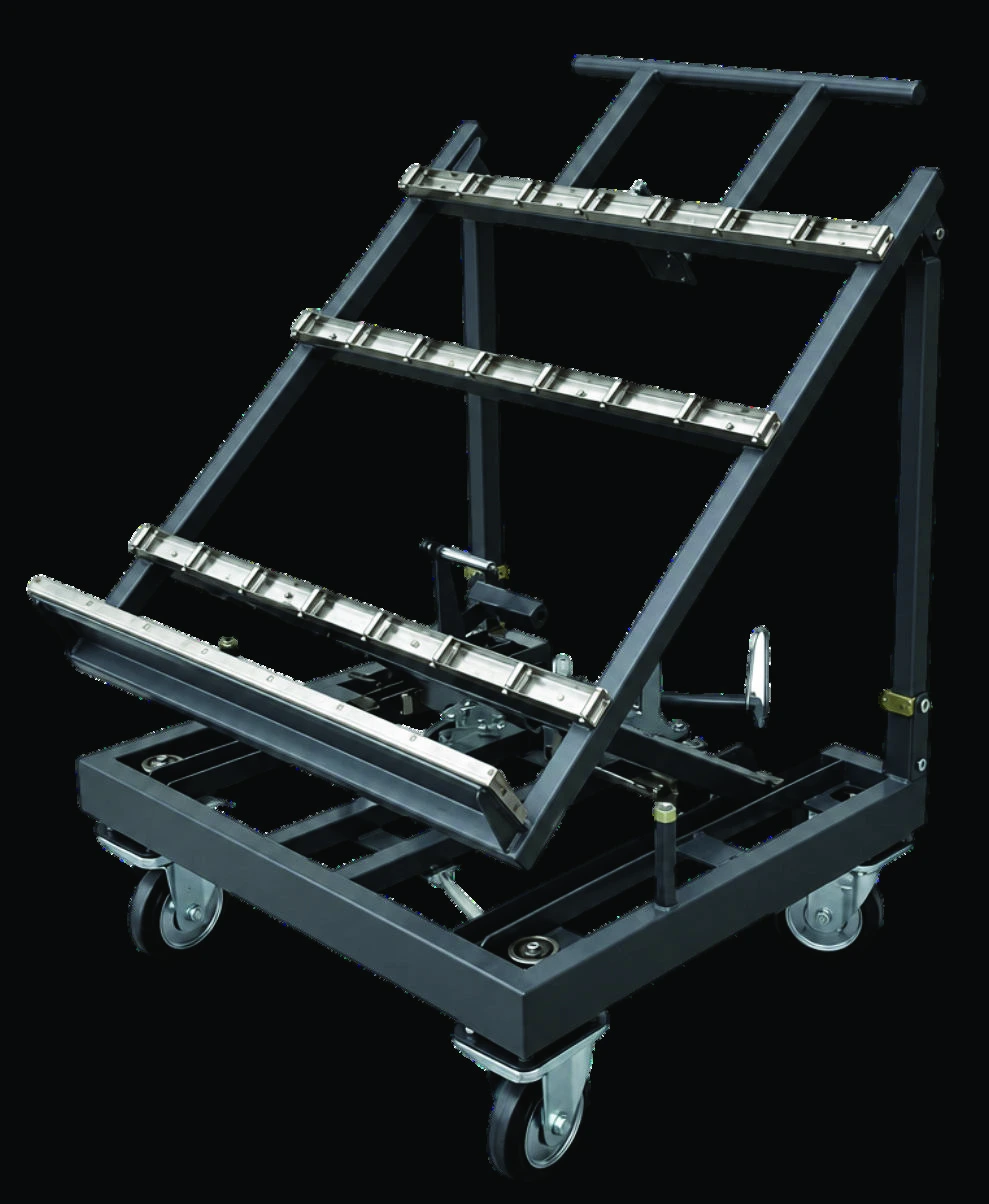

Tile loading trolley
01

Tile loading trolley

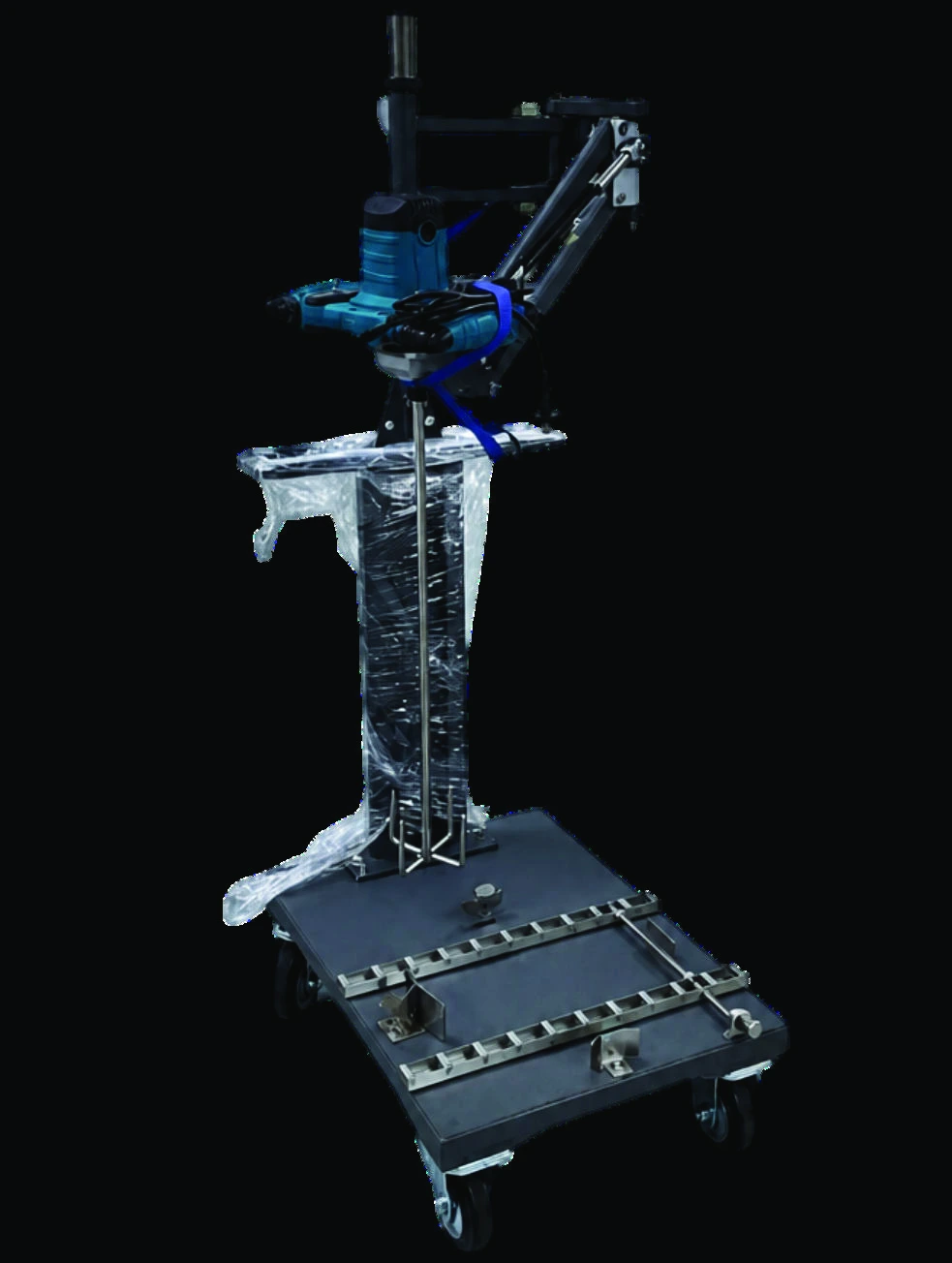

Mobile stirring and mixing equipment
02

Stirring & mixing unit

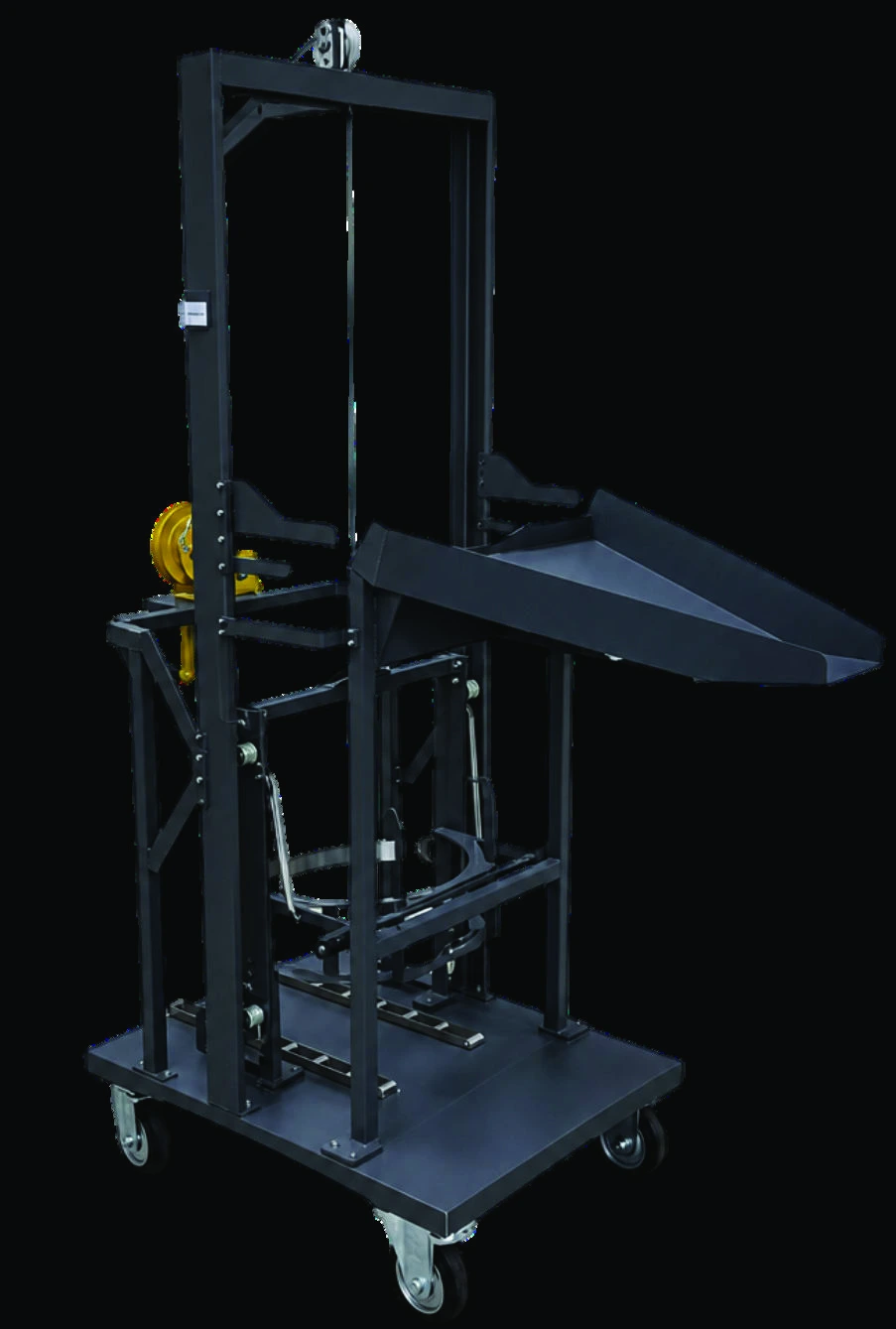

Mobile bucket lifting equipment
03

Bucket lift

05 / TECHNICAL SPECIFICATIONS

Know your equipment.

P900 PRO

P900 PRO specifications
Paving efficiency20–23 m²/h
Compatible tile formats600 × 600 / 800 × 800 / 600 × 1,200 mm, etc.
Maximum single-tile weight30 kg
Overall dimensions1,300 × 800 × 1,950 mm
Machine weight640 kg
Load capacity≤ 880 kg
Operating time> 6 hours
Charging time5–6 hours
Battery capacity180 Ah
Charging supplyAC 220 V
No-load movement speed≤ 0.5 m/s
Speed while paving25–100 mm/s
Obstacle height≤ 30 mm
Climbing ability≤ 10°

Specifications are based on the P900 PRO product brochure. Actual performance depends on tile format, material and site conditions.
